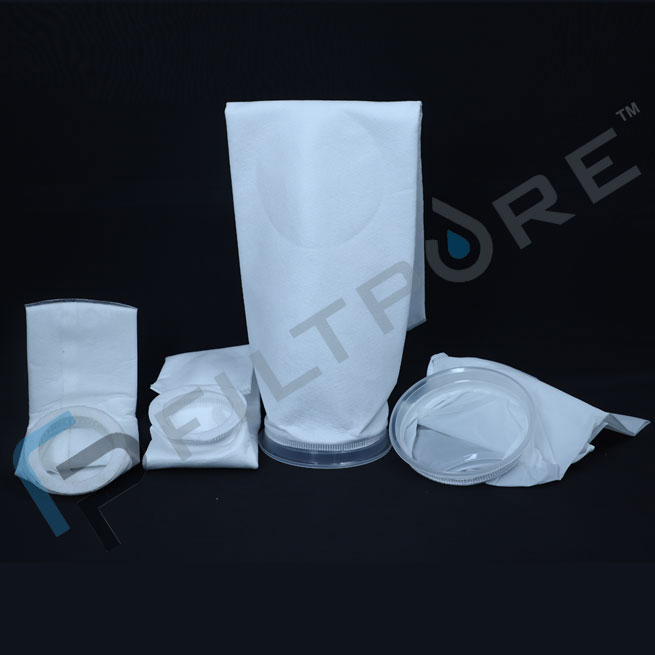

Filter bags for Liquid and Air

home Filter bags for Liquid and Air

Filter bags for Liquid and Air

Available in needle felt and mesh type material. All material is FDA compliant. Wide selection of filter media. e. g. Polypropylene, Polyester, Nylon, Cotton, non woven. Various micron ratings from 1 to 200(felt material). Positive sealing arrangement with S.S or rubber or plastic collar or by snap band type ring.High performance Available in single and double length. Broad chemical compatibility.

PRODUCT SPECIFICATION

  • Micron Rating: 1, 5, 10, 25, 50, 100 micron
  • Material of Construction: Polypropylene, Polyester, Nylon etc
  • Configuration : Thermally welded bag filter, Stitched bag filter
  • Maximum Operating Temperature: Polypropylene 70 oC, & Polyester 150 oC
Send Enquiry Download PDF
Filter bags for Liquid and Air

Filter Bag Sizes

Filter Bag SizeDiameter (Inch)Length (Inch)Filteration Area FT2Max. GPM
17.25162.0100
2.7.2531.54.5220
34.318.00.525
44.31141.050

FEATURES & BENEFITS

  • High performance
  • Filtration rating from 1 to 200 micron
  • Viscous fluid capability
  • High flow rates
  • Low pressure drop
  • Broad chemical compatibility
  • Positive sealing arrangement with choice of materials
  • High dirt holding capacity
  • Simple maintenance
  • FDA & NSF compliance

APPLICATIONS

  • Paints
  • Lacquers
  • Inks
  • Varnish
  • Resins
  • Adhesives
  • Oils
  • Bitumen
  • Fats
  • Waxes
  • Plasticizers
  • Primary pharmaceuticals
  • Food ingredients
  • Vegetable oils
  • Cooling and heating water
  • Irrigation systems
  • Cutting fluids/oils
  • High viscosity fluid
